Safety Logic Controller Description

Description

The LED indicators, buttons and switches are integrated to operate the Safety Logic Controller.

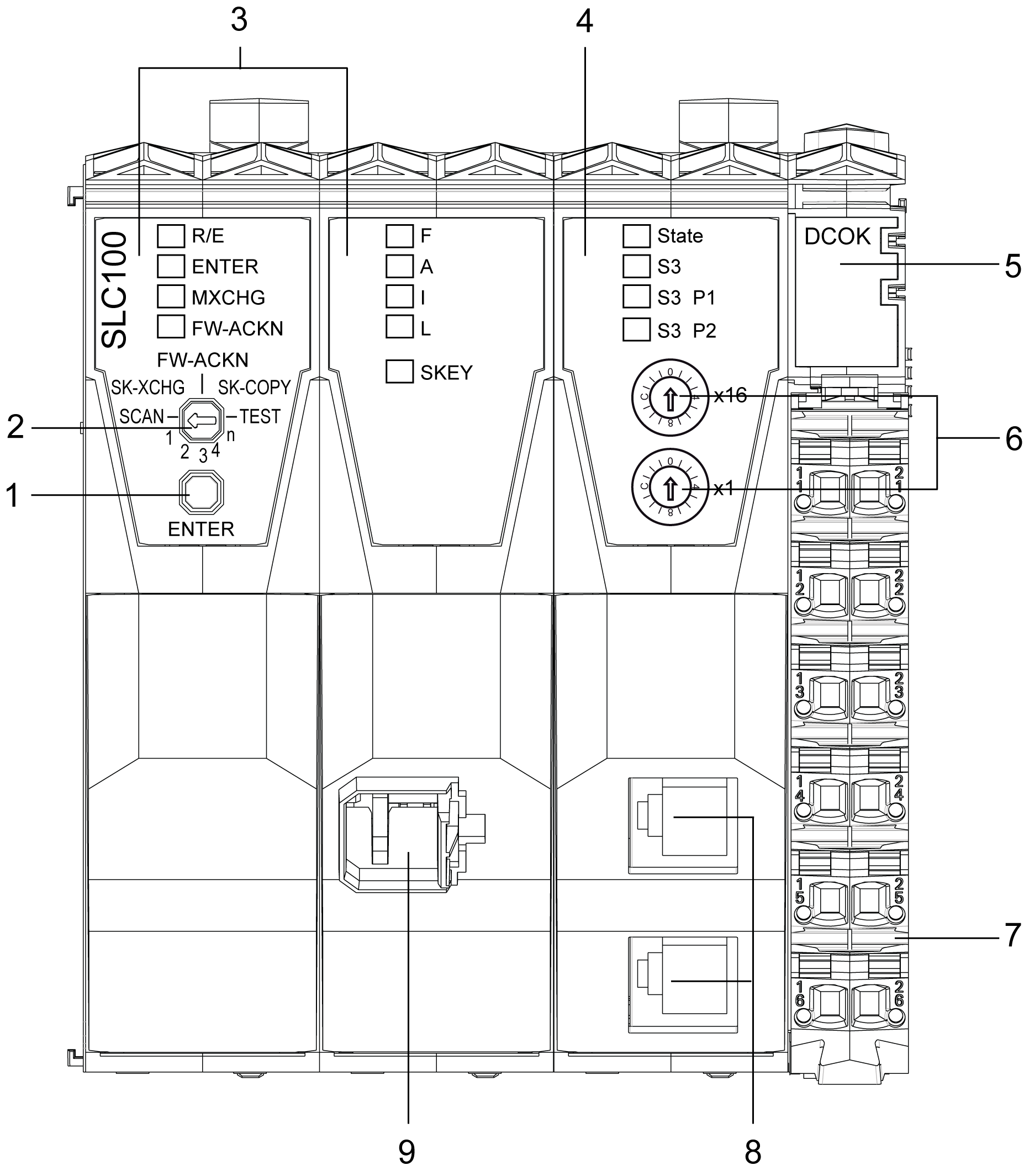

The following figure presents the operating and connection elements:

N°	Description	Refer to
1	Confirmation button	Confirming a Function
2	Selection switch	Description of the Selection Switch Functions
3	Logic processor	Logic Processor LED indicators
4	Sercos III interface	Sercos III interface
5	Integrated power supply	Integrated Power Supply
6	Sercos address switches	Sercos Address
7	Terminal block for Safety Logic Controller power supply	Safety-Related Terminal Block Presentation
8	Sercos III connection with 2 x RJ45	Sercos III RJ45 Ports
9	Memory key slot / slot cover	Safety Logic Controller Memory Key

These components enable you to perform the following operations:

omodule replacement

ofirmware update

omemory key replacement, including a possible transfer of module configuration from the previous memory key

osupport for the replacement of Safety Logic Controller
